Description
Beltless 650mm wide deburring machine

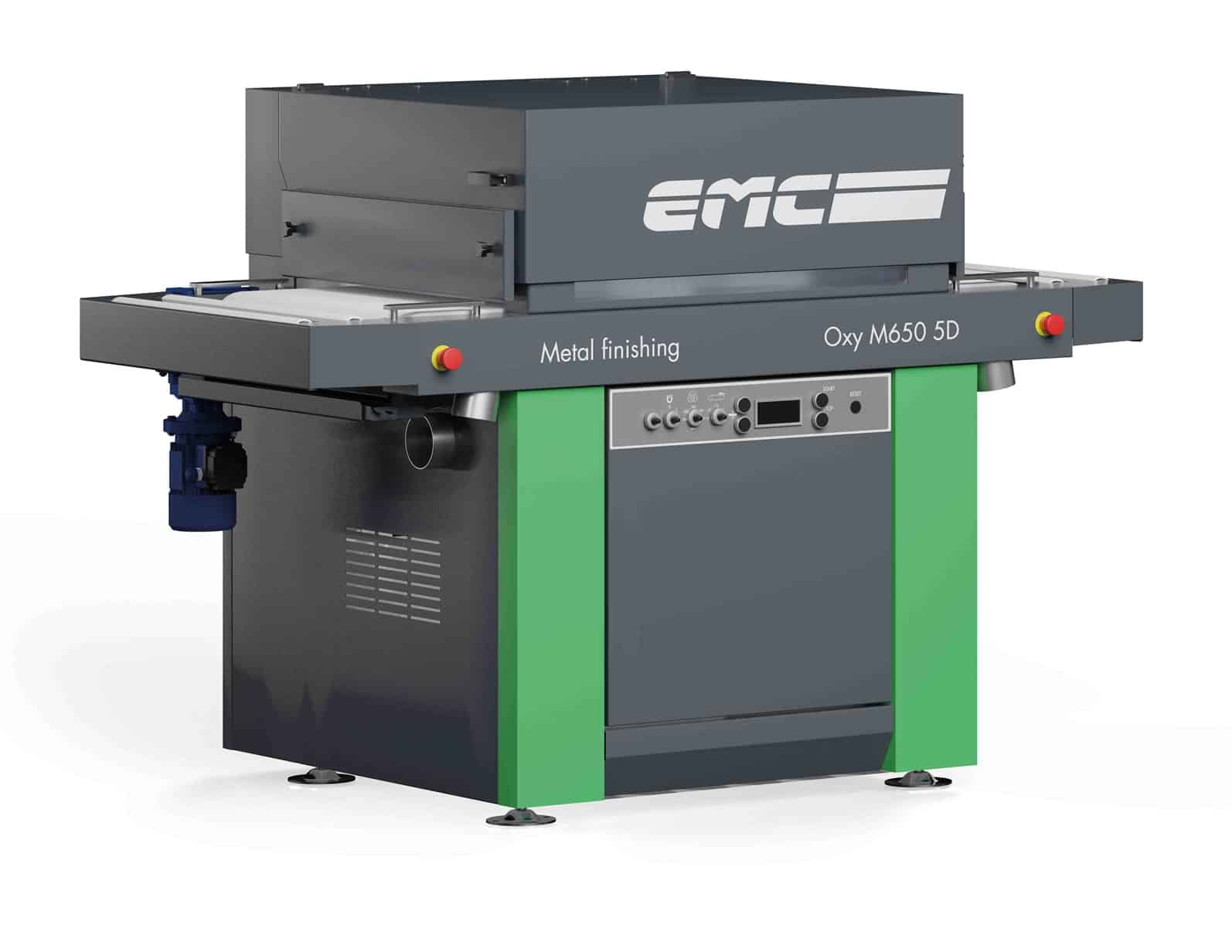

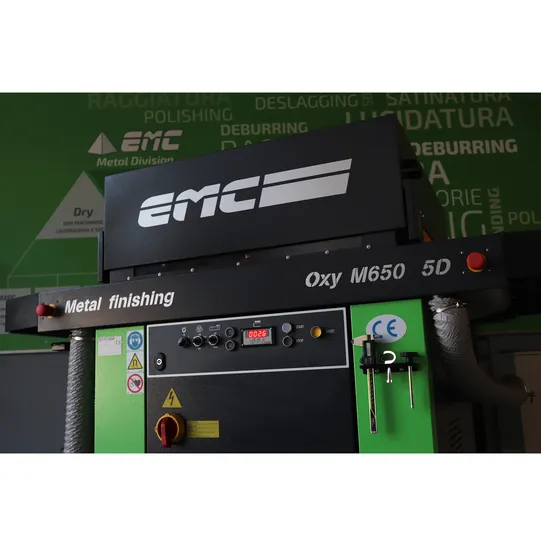

The OXY M650 5D is a precision-engineered machine developed to automate surface treatment processes traditionally performed manually. Equipped with five high-performance rotating disc tools, it ensures uniform and efficient processing of parts with minimal operator involvement.
Parts are automatically conveyed through the machine via a precision-controlled conveyor belt. As they pass beneath the rotating discs, surfaces are treated thoroughly. Once processed, the parts exit the machine ready for collection—no manual handling required during operation.
BASIC MACHINE:

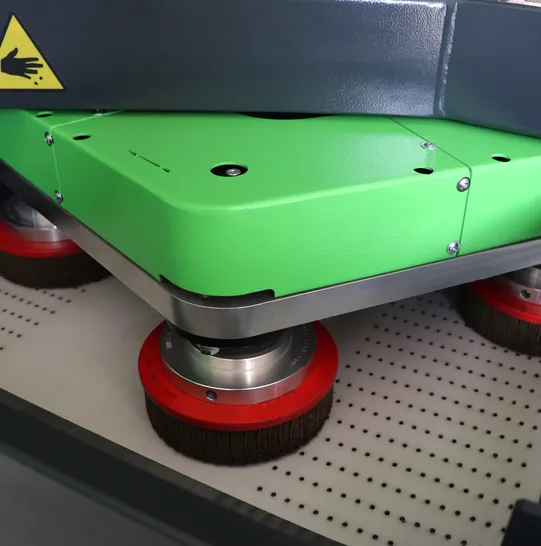

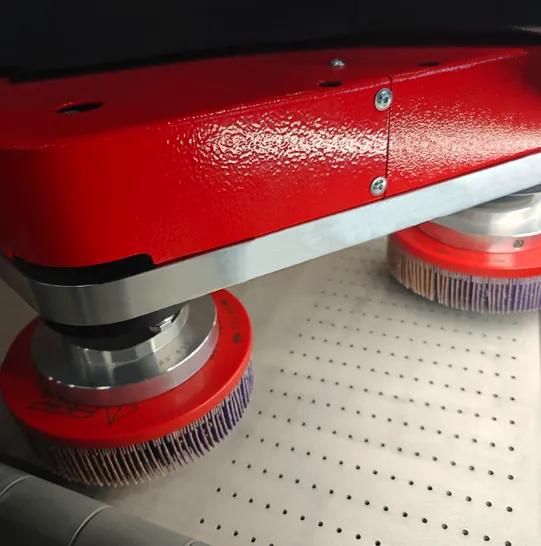

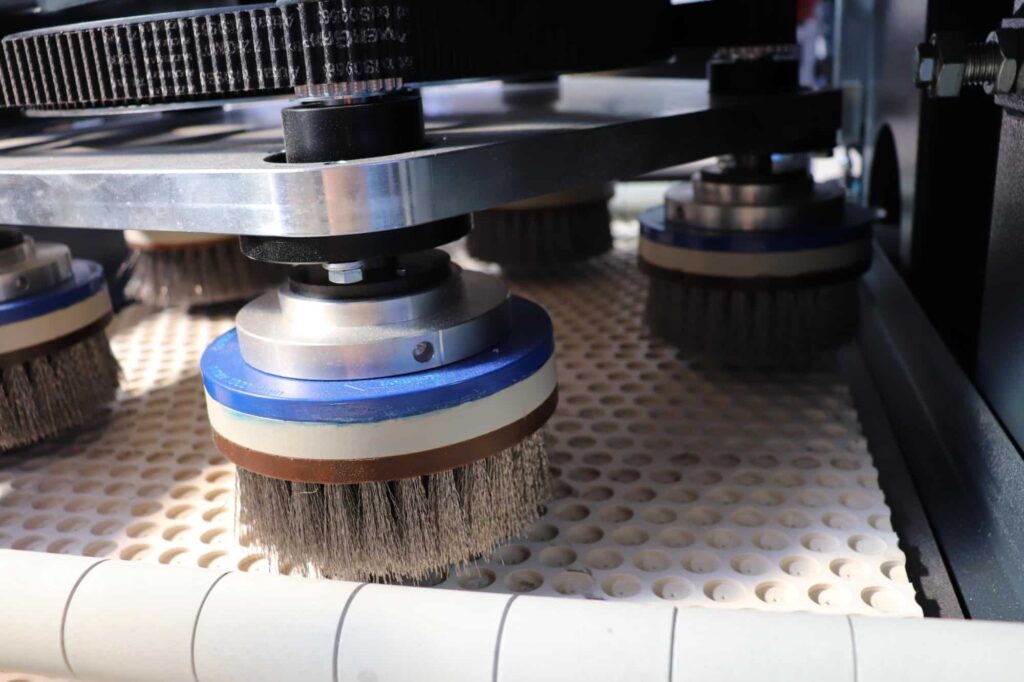

Orbital working system by 5 revolving discs
Fixed work table 900mm
Working width 650mm
Working thickness min/max 0,5 – 80 mm
Vacuum table with Inverter
Inverter for Carousel
Quick easy discs changing device
