Description
Mechanical slag removal, grinding and deburring in one machine!

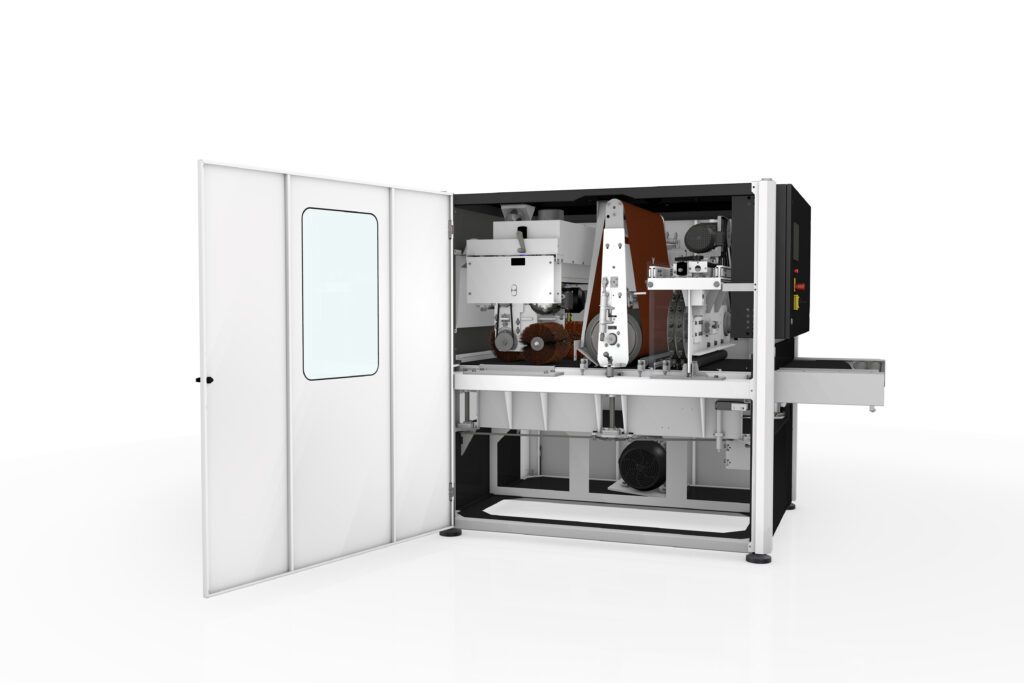

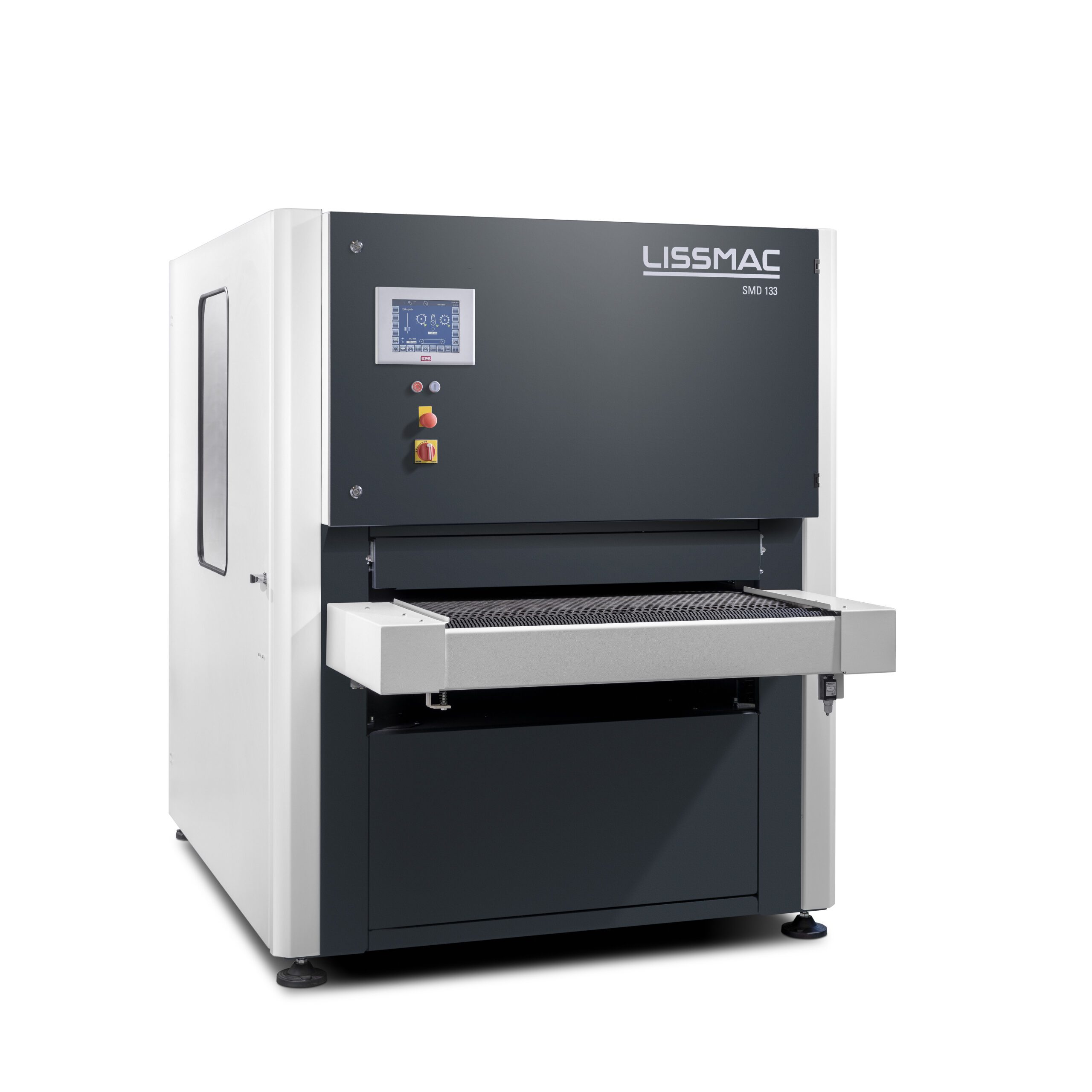

The LISSMAC SMD 133 DRE is a heavy-duty, single-sided dry grinding machine designed for efficient mechanical slag removal, deburring, and edge rounding on thick sheet metal. It features “cool grinding” technology and hard metal pins to process materials up to 100mm thick without heat input.
LISSMAC SMD 133 DRE: The Powerhouse for Heavy-Duty Slag Removal
Precision Processing for Thick Plate Metal
The LISSMAC SMD 133 DRE is the industry standard for single-sided dry grinding, specifically engineered to tackle the toughest post-processing tasks. Whether you are dealing with heavy slag from plasma or oxy-fuel cutting, this machine delivers high-speed mechanical slag removal, deburring, and edge rounding in a single pass. Designed for durability, it effortlessly processes workpieces up to 100mm thick, making it an essential asset for heavy-plate fabricators.
Innovative “Cool Grinding” Technology
One of the standout features of the SMD 133 DRE is its advanced “cool grinding” approach. By utilizing specialized hard metal pins, the machine removes dross and slag without the intense heat input typical of traditional grinding methods. This ensures the structural integrity of your material remains intact, preventing warping or thermal distortion even on the thickest sheets requiring slag removal.
Efficiency Meets Ergonomics
Forget the physical strain and inconsistency of manual angle grinding. The LISSMAC SMD 133 DRE automates the most labor-intensive parts of the fabrication process. Its intuitive control system allows operators to achieve uniform slag removal, edge rounding and clean surfaces rapidly, significantly increasing throughput. With a compact footprint for its power class, it integrates seamlessly into existing production lines, ensuring your workflow remains fast, safe, and cost-effective.
Key Benefits:
- Massive Capacity: Handles plate thicknesses up to 100mm.

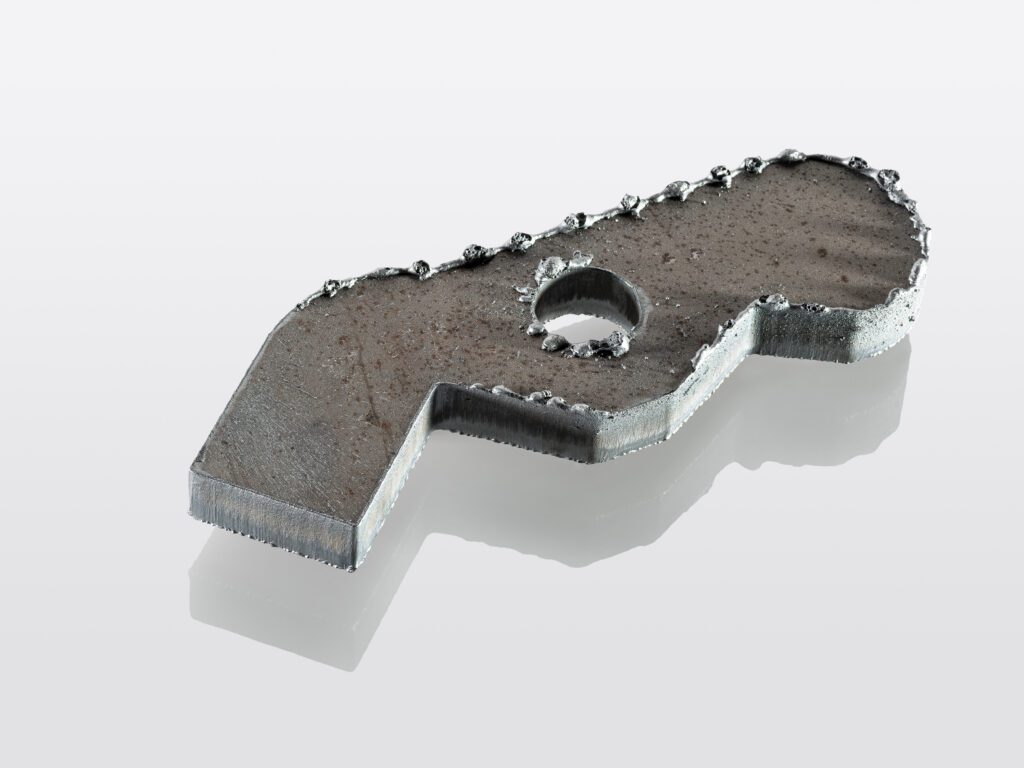

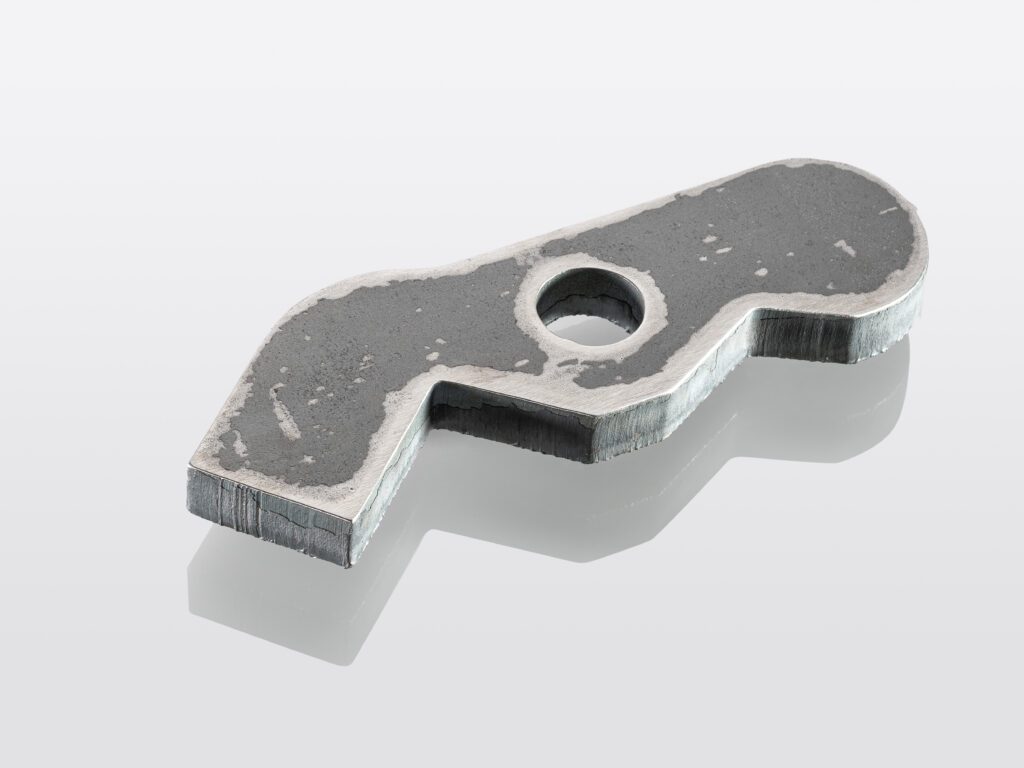

- Powerful Slag Removal: Hard metal pins eliminate stubborn dross instantly.
- No Heat Input: Protects material properties with dry, cool processing.
- Consistent Quality: Uniform deburring and rounding across every workpiece.
Technical Data
| SBM-XS G1E1 Deburring Machine | |
|---|---|
| Working width max. | 950mm |
| Workable material thickness | 3.0 – 100 mm |
| Voltage | 400 V / 50 Hz |
| Network Structure | 3~ PEN / 3~ PE+N |
| total current consumption | 51.4 A |
| total power | 23.5 kW |
| insulation class | IP 42 |
| infinitely variable feed speed | 0.5 – 8M / min. |
| weight approx. | 2900kg |
| dimensions (W/D/H ) approx. | 1600 x 2600 x 1900 mm |
- Removing slag,deburring and edge rounding in one throughfeed pass, saves time
- The high quality and solid construction of the machine guarantees a long lifetime

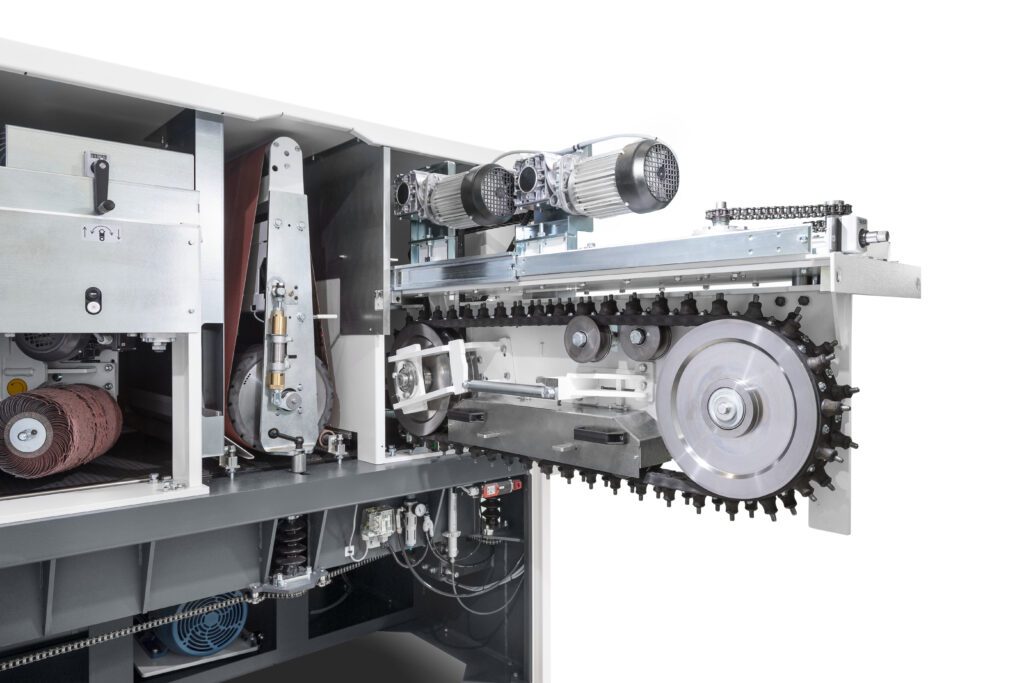

- The mechanical removal of slag by power-pins gives long tool life and reduces grinding costs enormously
- A soft, large diameter, contact roller, enables to process warped parts and accepts thickness tolerances
- Our 2 rotary heads give a perfectly even edge rounding
- Both mild- and stainless steels can be processed
- The compact construction of the machine requires limited floor space
- The serrated infeed pressure rollers quarantee a safe and easy feeding of parts

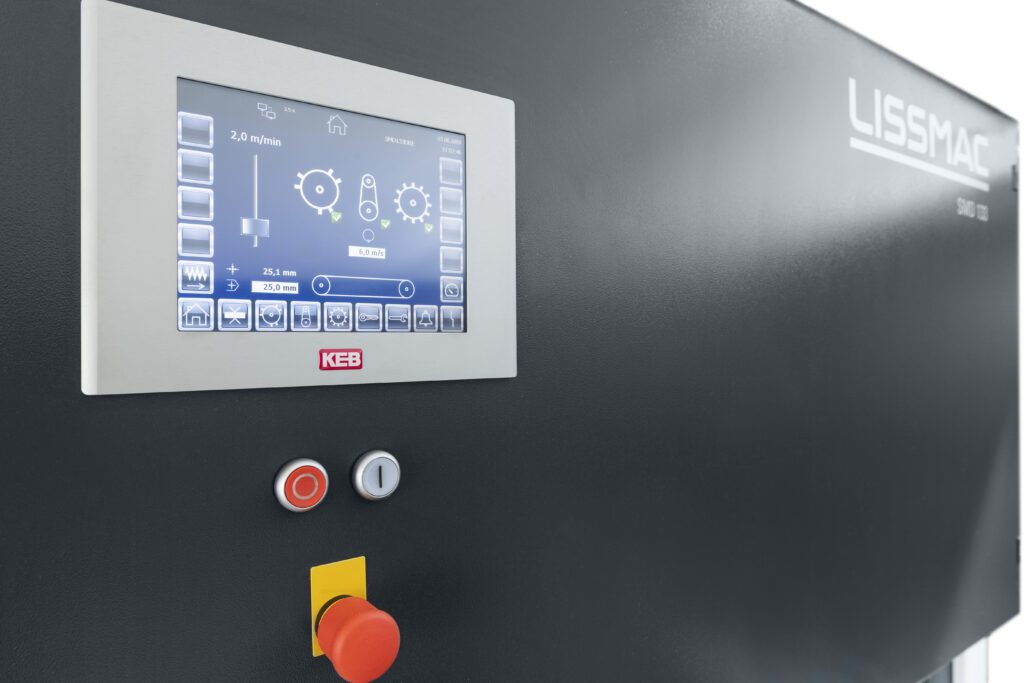

- The ergonomical and intuitive controls make it easy to operate the machine
- The individual operation of each head guarantees an optimum flexibility of the machine for various applications
- The optimum accessibility of the machine enables easy tool change, cleaning and maintenance
